Cell Overlay Mattress with Pump (Stage II) QDC 501
R6,690.95 Inc. Vat
Description:

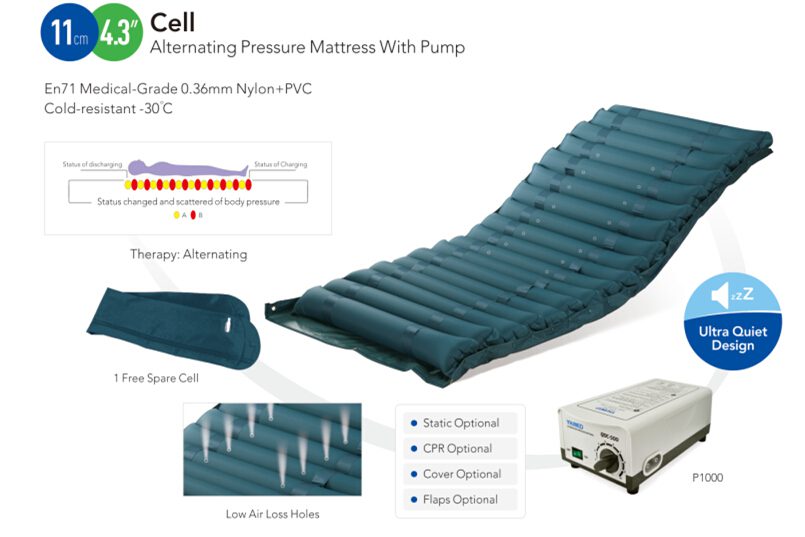

QDC-501 Alternating Pressure Mattress With Pump
QDC-501 is designed for the treatment and prevention of pressure sorestage Ⅰ and Ⅱ in long-term and domiciliary therapies. The alternating mattress system consists an 11 cm-high mattress with 18 Nylon+PVC interchangeable cells working in LTERNATING mode. Low air loss holes provide good ventilation and keep the users dry from unwanted humidity building-up between the body and the mattress. The pump operates at very low sound level and is easy to use. The pump can be hung to the end frame thanks to an easy clip-on hanger.
Cell Overlay Mattress with Pump (Stage II) QDC 501
Cell Overlay Mattress with Pump (Stage II) QDC 501
Technical Parameters Of The Mattress
| Dimensions without flap(L*W*H) | 200*90*11cm |
| Cell height | 11 cm/ 4.3” |
| Number of cells with holes | 8 |
| Material thickness | 0.36mm |
| Cell and base material | Nylon+PVC |
| Number of cells | 18+1 Free space cell |
| Weight support | 145kg |
| Mattress system | Overlay |
| Pressure Ulcer Stage | Ⅰ, Ⅱ |
| Warranty | 12months |
Technical Parameters Of The Pump (P1000)
| Electrical | AC 110V/220V 50Hz/60Hz |
| Pressure | 55-120 mmHg |
| Air output | 7-8 Liter/min |
| Dimensions(L*W*H) | 26.5*13.5*10 cm |
| Plastic Casing | Taiwan Chimei ABS |
| Test Duration | 24 Hours (Inflation) |
| Certificates | TUV-CE IEC/EN60601-1&60601-1-2 |
| Synchronous Motor | TW Ann Yih Brand |
| Cycle time | 12 min |
| Warranty | 24 Months |
