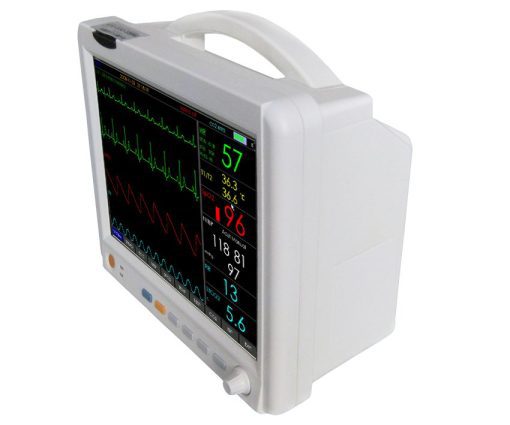

P Monitor JR2000D & Nibp/Epo2/Temp/ETC2

P Monitor JR2000D

P Monitor JR2000D & Nibp/Epo2/Temp/ETC2

P Monitor JR2000D

P Monitor JR2000D & Nibp/ PR/Spo2/Temp/ECG/ETC02 12 inch screen

R39,888.69 Inc. Vat

Features

Monitoring six parameters:ECG, NIBP, RESP, SPO2, PULSE RATE and DUAL-TEMP.
Optional: EICO2, IBP, Recorder, VGA, Central Monitor
12.1″ color TFT screen, OxyCRG Dynamic View Display, Trend coexist display
13 Type Arrhythmic Analysis, multi-lead ECG waveforms display in phase
15 Type drug calculation and tilration table
SPO2 can testing for 0.1% Weak, high accuracy
Over-pressure NIBP protect for patients’ safety
Anti-ESU, anti- defibrillator, RA-LL impedance
72-720 hours large volume of tabular and graphic trends information storage and easy to recall
Up to 4 hours working capacity of built-in rechargeable battery
Networking capacity and nurse-calling system

Category: Patient monitor Tag: P Monitor JR2000A

Description

P Monitor JR2000D & Nibp/Epo2/Temp/ETC2

Patient Monitor JR2000D & Nibp/ PR/Spo2/Temp/ECG/ETC02 12″

Specifications

ECG

Input: Whole-lead ECG cable, standard AAMI cable connector
Lead selection:I,II,III avR, avL, avF,c, (v1,v2,v3,v4,v5,v6)
Gain selection:x 1/4 , x 1/2, x1 , x2
Sweep speed:12.5, 25, 50mm.s
Bandwidth:

0.05- 130 Hz ( for diagnosis)

0.5- 40 Hz (for monitor or operation)

Calibration signal:1mV
Protection: against electrosurgical interference and defibrillation

Heart Rate

Measuring Range: 15- 300 bpm
Accuracy: ± 1bpm
Resolution: 1bpm
Alarm Mode: Audible and visual alarm

RESP

Method: Resistance on chest
Measuring Range:7-120 BMP
Gain Selection: x1/2, x1, x2, x4

Oxygen Saturation (SPO2)

Measuring Range: 0-100%
Accuracy: ±2% (70- 100%)

0-69% unspecified

NIBP

Method: Oscillometric
Mode: Manual, Auto, STAT
Measuring Interval in Auto mode: 1-480 min
Measuring interval in STAT mode:5 min
Measuring type: SYS, DIA, MEAN
Measuring Range:

SYS- 40-270mmHg

DIA- 10 -215mmHg

MEAN- 20-235mmHg

Resolution: 1mmHg
Over-pressure protection: Yes-

Adult: 300mmHg

Child:240mmHg

Neonate:150mmHg

Temperature

Measuring range: 0-50°C
Resolution: 0.1°C
Accuracy: ±0.2°C

Operation Environment

Temperature: 0-45°C
Humidity: 30-85 %
Non condensing

Power Option

AC power:

100-240 V.

50-60Hz

10VA
