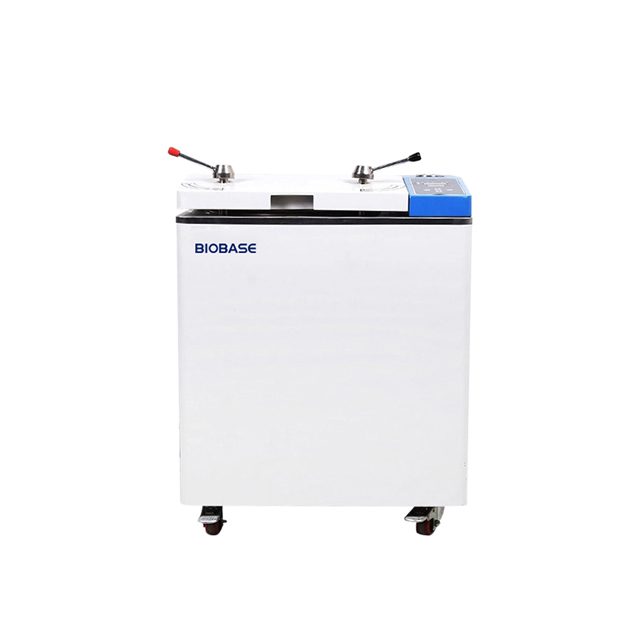

Vertical Autoclave Model BKQ-Z100

Vertical Autoclave Model BKQ-Z100

Safety Features:

1. Over pressure, safety valve can automatically open to release pressure.

2. Over temperature, the system will stop heating automatically and start alarm.

4. Anti dry-out function. If water level is too low, heating stops and error code displays on screen.

5. Over current, over voltage or electric leakage protection apparatus-air switch.

Technical Features:

1. Complete protection system.

2. Flip-open door structure with spring booster, easy to open.

3. LED displays inner temperature, time and error codes.

4. Automatic exhausting steam function.

5. Reliable mechanical safety interlock feature.

6. External material: Cold rolled steel with anti-bacteria powder coating.

7. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.

8. Door cover is wrapped completely, to prevent scald effectively.

9. Radial self-expanding silicone rubber seals with high effect and long using life.

10. Optional printer for recording sterilization data.

11.Optional  stainless stee bucket[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Model	BKQ-Z30I	BKQ-Z50I	BKQ-Z75I	BKQ-Z100I
Capacity	30L	50L	75L	100L
Chamber size(mm)	φ385*412	φ385*515	φ385*715	φ385*915
ChamberMaterial	SUS304
MaxPressure	0.3MPa
RatedWorkingPressure	0.22MPa
MaxTemperature	150℃
WorkingTempRange	105～134℃
Temp.Display Accuracy	±0.1℃
TimingRange	0-999min
DynamicPulseExhaustTime	0~9times
WaterRequirement	Distilled water or demineralized water
Standard Accessories	SS basket*1pcs, SS tray*1pcs		SS basket*2pcs, SS tray*1pcs
Consumption	4KW
PowerSupply	AC110/220V±10%, 50/60Hz
External Size(W*D*H)mm	645*610*710	645*610*850	645*610*1000	645*610*1200
Packing Size(W*D*H)mm	750*745*950	750*745*1100	750*745*1240	750*745*1450
GrossWeight(kg)	100	103	114	122

Note: It is applicable to the altitude below 3,500m[/vc_column_text][/vc_column][/vc_row]
